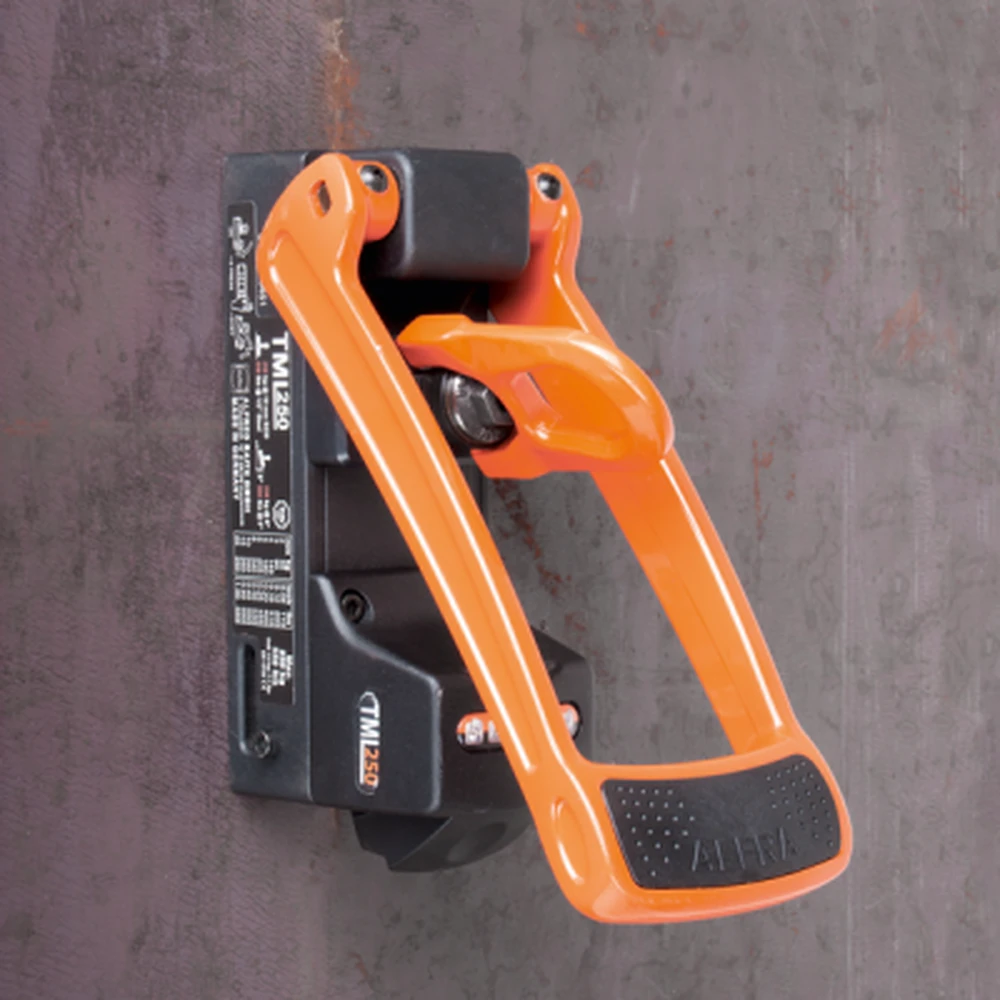

ALFRA TML-250 Lifting Magnet

Features:

• Up to 550 lbs (250 kg) load-bearing capacity with the material thickness of 10 mm (3/8″) and 195 lbs (90 kg) with just 3 mm (1/8″) material thickness on steel S235 while offering 3:1 safety factor
• Outstanding performance on thin-walled materials
• Up to 70% less dead weight with at least the same performance in contrast to conventional magnets
• Easy activation with minimal effort due to the ergonomic activation lever
• Innovative operational concept allowing for an enlarged operating range
• 360° rotable and 180° pivotable load swivel, even under full load
• Wear-resistant magnetic contact area made of hardened steel with TiN-coating preventing damages and guaranteeing a long lifetime
