| Panasonic TM/TL Series (GIII) Arc Welding Robot | |
| Input Power | 3-Phase, 200/220VAC, 3kVA, 50/60Hz |
| Memory Capacity | 40,000 points |
| Position Control | Software servo control |
| Control Axes | 6 axes simultaneously (Max. 27 axes) |
| Input and Output | 40 points (Optionally expandable up to 2048 points) |
| Welding Process, Output current/voltage and Duty Cycle depends on the welding power source capability |

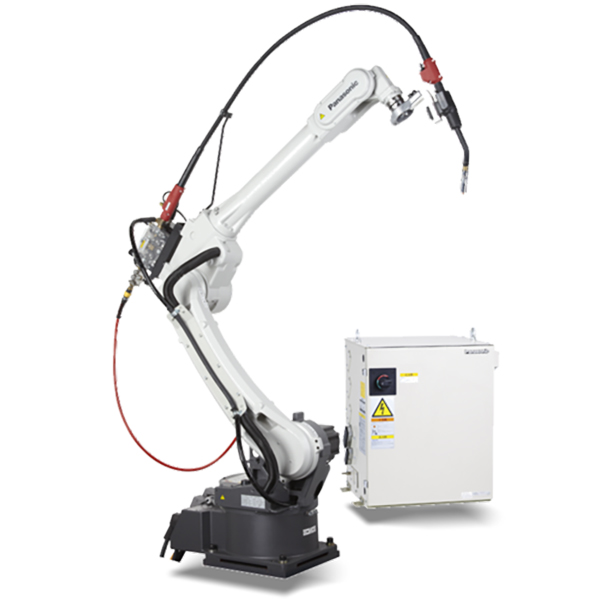

Panasonic TM/TL Series (GIII) Arc Welding Robot with Full Digital Welding Power source
Overview :
- 6 axis articulated arc welding robot
A variety of the selectable features specialized for arc welding - Combination with Full Digital welding power source achieves stable and high quality welding
Good bead appearance and low spatter even in high speed welding - Manipulator type selectable to fit your application
Arm length / Payload / Torch type
