Vaneaxial Models
- Flame-resistant UL94-V2-rated injection molded housing (5VA is the highest UL flame retardant rating possible)
- Glass-filled, polyester resin, spark-resistant fan blade
- Accommodates 8-inch flexible duct
- Optional attachable duct canister

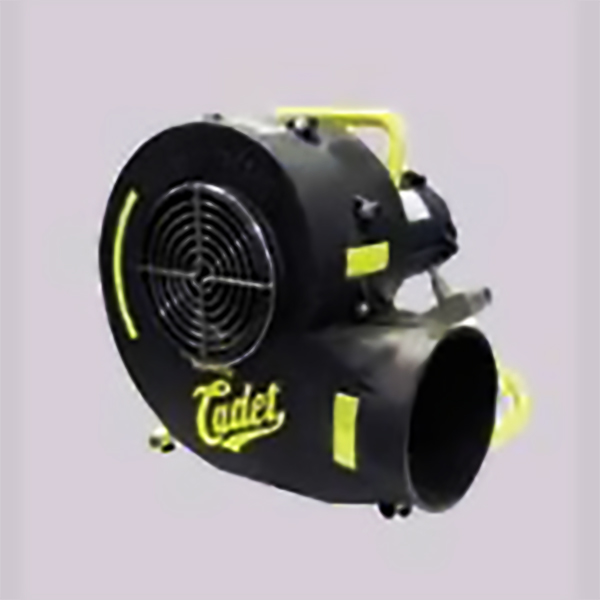

Centrifugal Models
- Excellent airflow and pressure performance
- Flame-resistant UL94-V2 injection-molded housing
- Glass-filled, polyester resin spark resistant fan blade
- Accommodates 8-inch duct on inlet and outlet ends
- Fan scroll can be positioned easily at 45 degree, 90 degree and 180 degree discharge positions
- Available in electric and gasoline-driven models
COPPUSĀ®Ā Ā Portable Ventilator Specifications
Product | Motor Type | Fan Size and Type | Air Flows CFM (m3/hr) | Features |
Air Max 12 | Electric | 12ā (305mm) Vaneaxial | 2,200 (3,735) | Lightweight, compact |
Cadet | Electric or gas | 8ā (203mm) Vaneaxial | 804-867 (1,358-1,465) | Lightweight, compact |
Double Duty Heat Killer | Electric | 24ā (610mm) and
30ā (762mm) |
7,100-17,000
(12,000-28,890) |
Floor mount and optional wall mount |
Jectair / Jectair Hornet | Compressed Air | Discharge sizes 8ā (203mm) to 14ā (356mm) Venturi | 1,370-8,900
(2,328-15,121) |
Lightweight, no moving parts, variable flow |
Reaction Fans | Compressed Air | 12ā (305mm),
16ā (406mm) |
2,140-5,100
(3,636-8,665) |
Ideal for hazardous locations; all aluminum-cast housing |
Reactions Fans | Compressed Air | 20ā (508mm),
24ā (610mm) |
11,000-16,900 (18,689-28,700) | Flange mount directly to standard API manways |
Vano 175 CV, 250 CV | Electric | 8ā (203mm) and
12ā (305mm) Vanexial |
1,500-3,000
(2,549-5,098) |
Rugged, durable, versatile utility air mover |
